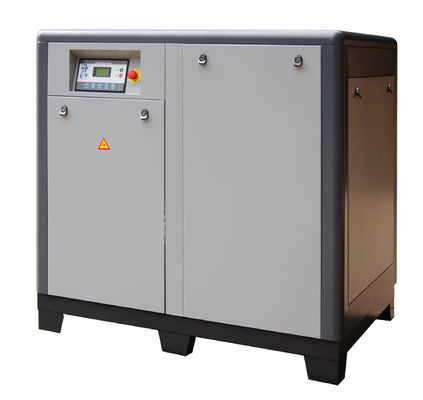

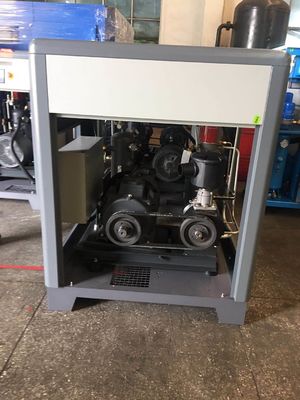

22Kw Variable Speed Screw Compressor Rotary 440v Single Stage
商品の詳細
| ハイライト | 22Kw variable speed screw compressor,440v variable speed screw compressor,440v rotary type air compressor |
||
|---|---|---|---|
製品の説明
Compressor Belt Screw Air Compressor Factory 22Kw 8Bar Belt Drive Screw Air Compressor
| Model | CHIC-30A |
|
Air Delivery(m³/min/Mpa) |
3.8/0.7;3.6/0.8; 3.3/1.0; 2.9/1.2 |
| Power (kw) | 22kw |
| Motor |
380v 220v 440v/3/50HZ , 60HZ |
|
Stage |
Single Stage |
|
Ambient Temperature(℃) |
≤45℃ |
|
Cooling Way |
Air Cooling |
|
Exhaust Temperature(℃) |
≤Ambient Temperature +15℃ |
|
Driven Way |
Multivee belt |
|
Start Way |
Y-△/soft Start/Inverter Start |
|
Volume of Lubrication(L) |
15 |
|
Nose(ab) |
≤72 |
|
Oil content of air |
<2ppm |
|
Diameter of outlet(inch) |
G1″ |
|
Meas(length x Width x highmm) |
860×1115×1340 |
