400g M2を包む横の高速カートンに入れる機械Cartoner
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | CHIC |
| 証明 | CE ISO |
| 最小注文数量 | 1部分 |
| パッケージの詳細 | 中パッキングはプラスチック フィルムであり、外側は燻蒸の木の場合である。私達の木の場合は非常に強い、それ海の長い時間の船積みに耐えることができる。そして保存力があるフィルム、それはが付いている機械機械 |
| 受渡し時間 | 30仕事日 |
| 支払条件 | L/C、T/T、ウェスタン・ユニオン |
| 供給の能力 | 20 PC /month |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| タイプ | 自動横のマスクの自動カートンに入れる包装機械 | ドライブの種類 | 電気 |
|---|---|---|---|
| 自動等級 | フル オートマチック | 電圧 | 380V 50Hz 3段階 |
| 容量 | 15-100のカートン/分 | 次元 | 2600*1350*1650mm |
| ハイライト | 横の高速カートンに入れる機械,400g M2の高速カートンに入れる機械,400g M2のcartonerの包装機械 |
||
製品の説明

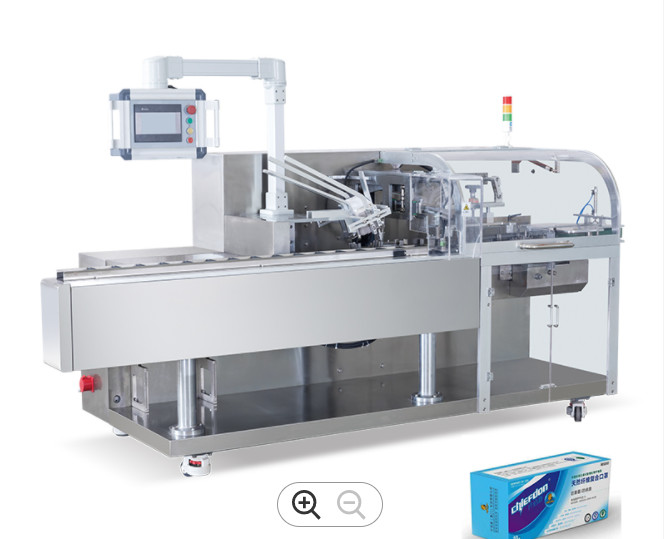

Automatic Horizontal Face Mask Automatic Cartoning Packaging Machine
Application:
The cartoning machine is a star product developed and manufactured by our company. It is applied to a variety of foods and daily necessities. The operation process is as follows: automatic carton forming, automatic feeding, automatic forming of carton hooks, and bottoming of products. Push the paper tray and seal the box.
Specifications :
| Capacity | 15-100box/min |
| Box max size | 220*90*60mm |
| Box min size | 50*20*15mm |
| Box weight | 300-400g/m2 |
| Air consumption | 20m3/h |
| Power | 1.5kw |
| Voltage | 220V 50HZ |
| Machine size | 2600*1350*1650mm |
| Machine weight | 1200kg |
Feature:
The sealing system has the functions of opening box, loading material, folding, inserting box, sealing box and so on. The fuselage is made of steel structure, the outer surface is painted with baking paint, and the parts touching the color box are all made of high-quality stainless steel and aluminum. The surface is polished, which has a beautiful appearance and does not pollute the environment.
machine accessory list:
| No. | Name | Brand | Made in |
| 1 | The main body | Stainless steel | China |
| 2 | electric elements | Schneider / OMRON | french/japan |
| 3 | pneumatic | AIRTAC | Joint venture |
| 4 | Bearing | Luoyang | China |
| 5 | servo motor | Panasonic | JAPAN |
| 6 | PLC | Siemens | German |
| 7 | Touch screen | Siemens | German |
| 8 | Driver | Starlight transmission | China |
Samples:
Pre-Sale Service:
We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.
After-Sale Service:
Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.
Operation training: 1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling. 2: Welcome to our factory learning. 3: Engineers available to service machinery overseas.
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
