電気化粧品の自動カートンに入れる機械自動Cartoner ZH120
| 起源の場所 | 中国 |
|---|---|
| ブランド名 | CHIC |
| 証明 | CE ISO |
| 最小注文数量 | 1部分 |
| パッケージの詳細 | 中パッキングはプラスチック フィルムであり、外側は燻蒸の木の場合である。私達の木の場合は非常に強い、それ海の長い時間の船積みに耐えることができる。そして保存力があるフィルム、それはが付いている機械機械 |
| 受渡し時間 | 30仕事日 |
| 支払条件 | L/C、T/T、ウェスタン・ユニオン |
| 供給の能力 | 20 PC /month |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| タイプ | 化粧品の医学プロダクトはカートンに入れる包装機械をカートンに入れる | ドライブの種類 | 電気 |
|---|---|---|---|
| 電圧 | 380V 50Hz 3段階 | 容量 | 50-100のカートン/分 |
| 次元 | 3700*1350*1700 mm | カートンのサイズ | 最高。サイズ200*120*70mm |
| ハイライト | ZH120自動カートンに入れる機械,化粧品の自動カートンに入れる機械,自動cartoner機械 |
||
製品の説明

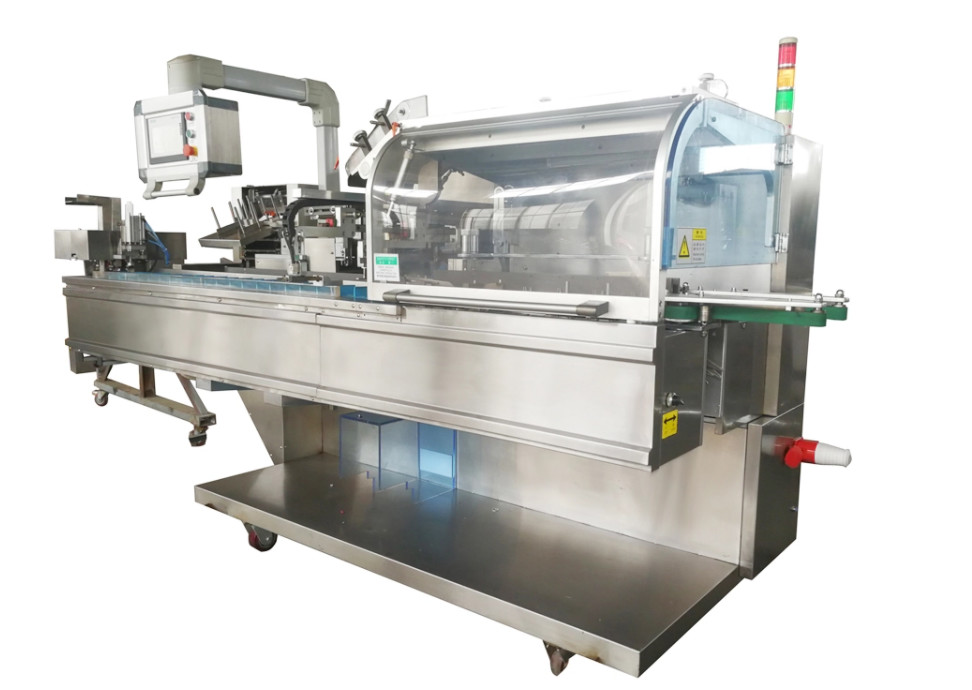

Cosmetic Medical Products Carton Cartoning Packaging Machine
Application:
This product is the new model which is our company further improved on the basis of advanced technologies at home and abroad. The machine is the high-tech products which integrates electricity, gas, light.
The product is suitable for boxing the Aluminum-Plastic blister card, medicine bottle, cosmetic, poker, electronic and daily.
The machine can finish automatically all jobs such as manual folding, paper box opening, the stuff boxing, batch number printing, box sealing and so on. It can be used alone, or be linked with the other device.
Specifications :
| Model | ZH120 |
| Production capacity | 50-100 b/min |
| Packing material |
the max. size 200×120×70mm the min. size 50×25×12mm |
| Box quality |
250-300 g/m2 According to its dimensions to confirm |
| Operation manual | max .size 260×180mm min. size 110×100mm |
| paper weight | 55-65g |
| Volume of consumption | 20 M3/h(pressure 0.5-0.7MPa) |
| Total power | 1.5KW |
| Packing material | The max. size 200×120×70mm |
| Electric power | 380V 50HZ |
| Overall dimension | 3700×1350×1700mm |
| weight | 1800 |
Feature:
1,Adopt PLC automatic control system, frequency conversion. The electrical components adopt international famous brands.
2,Photoelectric system monitors all parts moving. If there is malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3,Reject automatically the box which is lack of stuff or specification.
4,If the stuff or specification lack, the paper box will stop feeding.
5,Performance is stable. The operation is easy and convenience.
6,The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.
machine accessory list:
| No. | Name | Brand | Made in |
| 1 | The main body | Stainless steel | China |
| 2 | electric elements | Schneider / OMRON | french/japan |
| 3 | pneumatic | AIRTAC | Joint venture |
| 4 | Bearing | Luoyang | China |
| 5 | servo motor | Panasonic | JAPAN |
| 6 | PLC | Siemens | German |
| 7 | Touch screen | Siemens | German |
| 8 | Driver | Starlight transmission | China |
Samples:
Pre-Sale Service:
We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.
After-Sale Service:
Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.
Operation training: 1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling. 2: Welcome to our factory learning. 3: Engineers available to service machinery overseas.
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
