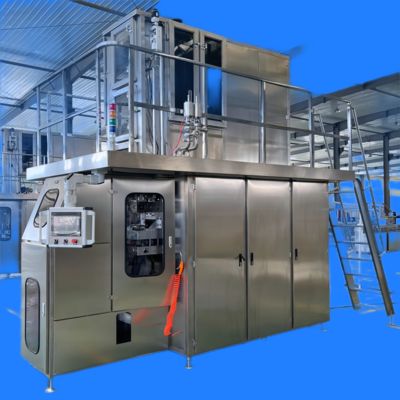

Aseptic Carton Filling Machine with 3m³/min Air Consumption for 1000ml Prisma Square or Basis and SUS304 Material
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル | CH-3000B | コントロール | PLC |
|---|---|---|---|
| 解決 | ターンキープロジェクト | キャップサイズ | φ26-φ36、1台のマシン用のワンサイズまたはカスタマイズ |
| 充填精度 | 0.5-1% | 空気消費 | 3m3/min、0.8～1MPa |
| パッキング容量 | 1000-3000CPH | 満ちるフォーマット | 1000ml プリズマ、スクエア、またはベーシス |
| ハイライト | 3m³/min Air Consumption Aseptic Carton Filling Machine,1000ml Prisma Square or Basis Aseptic Carton Filling Machine,SUS304 Material Aseptic Carton Filling Machine |
||
製品の説明
Superior Performance Milk Cartons Fill and Seal Machine CH-6000B with SUS304 Material 125ML Cartons
Product Description
The CH series aseptic carton filling machine is designed to fill sterilized liquid food into sterilized packaging material under aseptic conditions. It completes sealing and forming of the package to extend product shelf life. This advanced machine combines aseptic concepts from domestic and international sources, utilizing innovative "triple sterility guarantee" technology to ensure high-performance indicators in aseptic quality, production stability, and automation.
The equipment is suitable for producing beverages like pure milk, goat milk, soy milk, and vegetable protein drinks. Featuring an integrated machine-electrical-pneumatic design with 6 national patents, it offers simple structure, convenient maintenance, and superior performance. Using top-tier international control components, it achieves high automation, easy operation, low failure rates, and energy consumption 1/3 lower than comparable foreign products.
Key Features
- Advanced fully automatic PLC control system for paper feeding, strip pasting, packaging sterilization, filling, and forming
- Reliable operation with multi-point sensing alarm control and servo follow-up correction systems
- Safe sterilization technology ensures product safety
- Intuitive human-machine interface for convenient operation
- Key components sourced from internationally renowned companies
- Compatible with six-layer web base composite materials (PE/paper/aluminum foil)
Technical Specifications
| Production Capacity | 5000-6000 packets/hour |
|---|---|
| Filling Range | 120ml |
| Box Shape | Brick type |
| Shelf Life | 6-12 months at 25-30ºC |
| Packaging Material | Paper/Polyethylene (PE)/Aluminum film |
| Power | 14kw |
| Voltage | 3 phase 380V/220V 50Hz |
| Air Consumption | 1m³/min 0.8Mpa |
| Weight | 3000kg |
| Dimensions | 4600×1840×3660mm |
Machine Components
| Item | Component | Brand | Origin |
|---|---|---|---|
| 1 | PLC | Inovance/Omron | China/Japan |
| 2 | Touch screen | Inovance/Omron | China/Japan |
| 3 | Intermediate relay | IDEC | Japan |
| 4 | Air switch | Schneider | France |
| 5 | Contactor | Schneider | France |
| 6 | Cylinder | SMC | Japan |
| 7 | Electromagnetic valve | AIRTAC | China |
| 8 | Photoelectric | Inovance/Omron | China/Japan |
| 9 | Proximity switch 1 | GARLO GAVAZZI | Switzerland |
| 10 | Proximity switch 2 | Autonics | Korea |
| 11 | UV lamp and components | Philips | Netherland |
| 12 | Servo motor | Inovance/Omron | China/Japan |
| 13 | Servo motor driver | Inovance/Omron | China/Japan |
| 14 | Planetary reducer | Newstart | China |
| 15 | Color sensor | SICK | Germany |
| 16 | Bearing sleeve | Igus | Germany |
| 17 | Valve | Yuanan | China |
| 18 | Temperature control | Horning | China |
| 19 | Structure material | SUS304 | China |
Applications

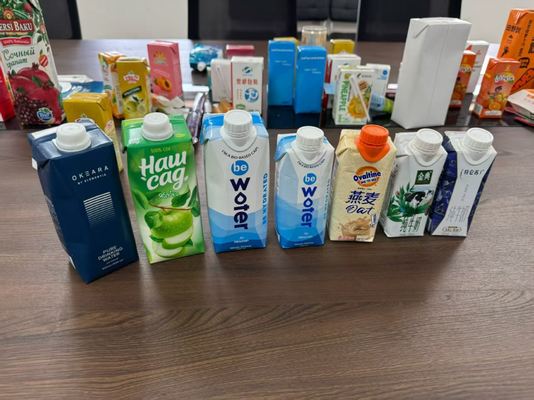

Designed for filling various liquid beverages including soy milk, plant milk, yogurt, fruit/vegetable juice, and plant protein in paper-aluminum-plastic composite cartons. Available in multiple models for different shapes and capacities (125ml to 1000ml) including standard, slim, and diamond carton variations with cap or straw options.
Support and Services
Comprehensive technical support including troubleshooting, maintenance guidance, and training. Services include regular maintenance schedules, spare parts availability, and software updates to maintain peak performance with quick response times to minimize downtime.
Frequently Asked Questions
Q: What is the brand name of the Aseptic Carton Filling Machine?
A: The brand name is CHIC.
Q: What is the model number of the Aseptic Carton Filling Machine?
A: The model number is CHIC-3000BS.
Q: Where is the Aseptic Carton Filling Machine manufactured?
A: The machine is manufactured in China.
Q: What certifications does the Aseptic Carton Filling Machine have?
A: The machine is certified with ISO and CE.
Q: What is the minimum order quantity for the Aseptic Carton Filling Machine?
A: The minimum order quantity is 1 piece.
