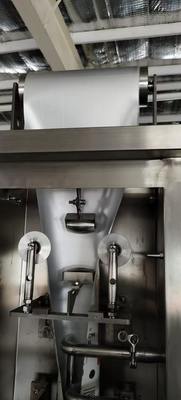

Aseptic Carton Filling Machine with 1000-5000CPH Packing Capacity φ26-φ36 Cap Size and 3m³/min Air Consumption for Juice Cartons Fill and Seal
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| コントロール | PLC | 電源 | 380V/50HZ または個別化 |
|---|---|---|---|
| 機械 | SUS304 | パッキング容量 | 1000-5000CPH |
| キャップサイズ | φ26-φ36、1台のマシン用のワンサイズまたはカスタマイズ | 空気消費 | 3m3/min、0.8～1MPa |
| 機械のサイズ | 4830mm×2150mm×3780mm | モデル | CH-5000LS |
| ハイライト | 1000-5000CPH Packing Capacity Aseptic Carton Filling Machine,φ26-φ36 Cap Size Juice Cartons Fill and Seal Machine,3m³/min Air Consumption Brick Type Carton Fill and Seal Machine |
||
製品の説明
0.5-1% Filling Accuracy Juice Cartons Fill and Seal Machine for Turn Key Projects
Product Description
50-100ml Stick and Triangular Shape Aseptic Filling Machine For 100% Pure Juice or Milk beverages
The CH series aseptic carton filling machine is specifically designed to fill sterilized liquid food into sterilized packaging material under aseptic conditions.
This machine is suitable for filling long strip or triangular paper-plastic composite film packaging types. Commonly seen on the market, general canning scales range from 500ML to 100ML per package. It can be used for filling milk, fruit and vegetable juice, vegetable protein, etc., packaged in paper-aluminum-plastic composite cartons.
This machine is responsible for sterilizing the carton roll packaging. The filling environment inside the machine is sterile, and when used in conjunction with UHT, the filled beverage becomes sterile, allowing the shelf life of the beverage to reach 6-12 months at room temperature.
Key Features
- Automatically performs feeding, sterilization, filling, preforming, sealing, and boxing processes
- Incorporates PLC control, photoelectric correction, variable frequency speed regulation, and intelligent electronic temperature control
- Filling section controlled by mass weighing system for precise quantitative filling
- Mirror welding technology ensures smooth, level weld seams without sanitary dead zones
- Programmable Logic Controller (PLC) enables automatic operation
- Closed-loop control technology manages tension, optoelectronic detection, and touch-screen interface
- Combination of mechanical primary drive and pneumatic auxiliary drive ensures stable operation
Technical Specifications
| Production Capacity | 5000 packets/hour |
| Filling Range | 100ml |
| Box Shape | Triangle bag/pillow bag |
| Shelf Life | 6-12 months at 25-30ºC |
| Packaging Material | Paper/Polyethylene (PE)/Aluminum film |
| Power | 14kw |
| Voltage | 3相电 380V/220V 50Hz |
| Air Source Consumption | 1m³/min 0.8Mpa |
| Weight | 3000kg |
| Dimensions | 4600*1840*3660mm |
Machine Components
| Item | Component | Brand | Origin |
|---|---|---|---|
| 1 | PLC | Inovance/Omron | China/Japan |
| 2 | Touch screen | Inovance/Omron | China/Japan |
| 3 | Intermediate relay | IDEC | Japan |
| 4 | Air switch | Schneider | France |
| 5 | Contactor | Schneider | France |
| 6 | Cylinder | SMC | Japan |
| 7 | Electromagnetic valve | AIRTAC | China |
| 8 | Photoelectric | Inovance/Omron | China/Japan |
| 9 | Proximity switch 1 | GARLO GAVAZZI | Switzerland |
| 10 | Proximity switch 2 | Autonics | Korea |
| 11 | UV lamp and components | Philips | Netherland |
| 12 | Servo motor | Inovance/Omron | China/Japan |
| 13 | Servo motor driver | Inovance/Omron | China/Japan |
| 14 | Planetary reducer | Newstart | China |
| 15 | Color sensor | SICK | Germany |
| 16 | Bearing sleeve | Igus | Germany |
| 17 | Valve | Yuanan | China |

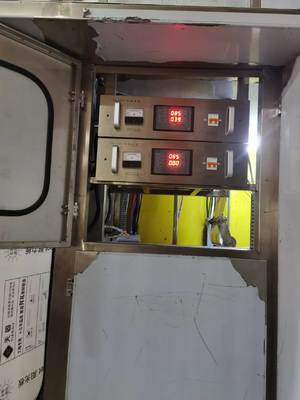

| 18 | Temperature control | Horning | China |
| 19 | Structure material | SUS304 | China |
Applications
This machine is designed for filling various liquid beverages such as soy milk, plant milk, yogurt, fruit and vegetable juice, and plant protein. The beverages are packaged in paper aluminum plastic composite packaging cartons, making it an environmentally friendly choice.
Based on the shape and capacity requirements of the product, the CHIC series filling machine offers a range of options including 125ml, 200S (slim 200ml), 200B (standard 200ml), 250S (slim 250ml), 250B (standard 250ml), 200Z (200ml diamond carton with cap/straw), 250D (250ml diamond carton with cap/straw), 330D (330ml diamond carton with cap/straw), 500D (500ml diamond carton with cap/straw), 500S (500ml slim carton with cap/straw), 1000S (1000ml slim type), and 1000D (1000ml diamond carton with cap).
Support and Services
Our Aseptic Carton Filling Machine comes with comprehensive product technical support and services to ensure optimal performance and efficiency.
Our technical support team is available to assist with installation, training, troubleshooting, and maintenance of the machine. Additionally, we offer regular maintenance services to keep the machine running smoothly and to address any potential issues proactively.
Our goal is to provide reliable support and services to maximize the uptime and productivity of your Aseptic Carton Filling Machine.
Frequently Asked Questions
Q: What is the brand name of this Aseptic Carton Filling Machine?
A: The brand name of this machine is CHIC.
Q: What is the model number of this Aseptic Carton Filling Machine?
A: The model number of this machine is CHIC-3000BS.
Q: Where is this Aseptic Carton Filling Machine manufactured?
A: This machine is manufactured in China.
Q: What certifications does this Aseptic Carton Filling Machine have?
A: This machine is certified with ISO and CE standards.
Q: What is the minimum order quantity for this Aseptic Carton Filling Machine?
A: The minimum order quantity for this machine is 1 piece.
