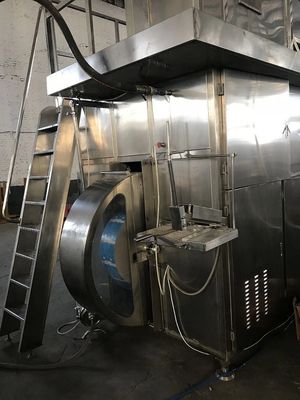

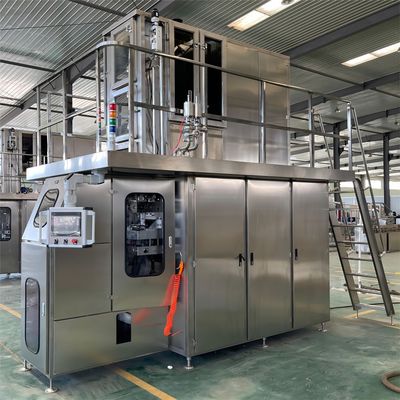

SUS304 Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System for 1000-3000CPH Packing Capacity
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| パッキング容量 | 1000-3000CPH | 満ちるフォーマット | 1000ml プリズマ、スクエア、またはベーシス |
|---|---|---|---|
| 機械 | SUS304 | 消費電力 | 23kw |
| 充填精度 | 0.5-1% | 電源 | 380V/50HZ または個別化 |
| 空気消費 | 3m3/min、0.8～1MPa | 機械のサイズ | 4830mm×2150mm×3780mm |
| ハイライト | Triple Sterility Guarantee Aseptic Carton Filling Machine,Servo Follow-up Correction System Brick Type Carton Filling Machine,1000-3000CPH Packing Capacity Gable Top Filling Machine |
||
製品の説明
SUS304 Material Brick type Pack Juice and Milk Packaging Machine with 3m3/min Air Consumption
Product Overview
The CH series aseptic carton filling machine is designed for filling sterilized liquid food into sterilized packaging material under aseptic conditions. It seals and forms the package simultaneously to prolong product shelf life. This advanced machine incorporates "triple sterility guarantee" technology to ensure high-level performance, production stability, and automation.
Key Features
- Advanced fully automatic PLC control system for complete process automation
- Multiple control systems including multi-point sensing alarm and servo follow-up correction
- Safe and reliable sterile system with proven sterilization technology
- User-friendly human-machine interface for intuitive operation
- Premium international components for maximum reliability
- Compatible with 6-layer composite materials (PE/paper/PE/aluminum foil/PE/PE)
Technical Specifications
| Standard Capacity | 1L Square type carton |
|---|---|
| Packaging Material | 7-layer laminated composite paper (raw paper/aluminum foil/polyethylene) |
| Production Capacity | 1000-3000 cartons per hour |
| Required Operators | 2 |
| Dimensions | 4830mm * 2150mm * 3780mm |
| Weight | 2000Kg |
| Power Consumption | 20KW |
| Compressed Air Consumption | 3m³/min at 0.8-1MPa |
| H₂O₂ Consumption | 0.2L per shift at 35% concentration |
| Cooling Water | Clean soft water |
Applications

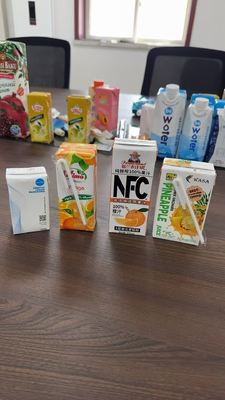

This machine is designed for filling various liquid beverages including pure milk, goat milk, soy milk, yogurt, fruit/vegetable juices, and plant protein drinks into paper-aluminum-plastic composite cartons. Available in multiple configurations:
- 125ml
- 200S (200ml slim type)
- 200B (200ml standard type)
- 250S (250ml slim type)
- 250B (250ml standard type)
- 200Z (200ml diamond carton with cap/straw)
- 250D (250ml diamond carton with cap/straw)
- 330D (330ml diamond carton with cap/straw)
- 500D (500ml diamond carton with cap/straw)
- 500S (500ml slim carton with cap/straw)
- 1000S (1000ml slim type)
- 1000D (1000ml diamond carton with cap)
Support & Services
- Installation and setup guidance
- Operator and maintenance training
- Troubleshooting assistance
- Scheduled maintenance services
- Spare parts availability
- Software updates and upgrades
- Comprehensive technical documentation
Frequently Asked Questions
What is the brand name of the Aseptic Carton Filling Machine?
The brand name is CHIC.
What is the model number of the Aseptic Carton Filling Machine?
The model number is CHIC-3000BS.
Where is the Aseptic Carton Filling Machine manufactured?
The machine is manufactured in China.
What certifications does the Aseptic Carton Filling Machine have?
The machine is certified with ISO and CE.
What is the minimum order quantity for the Aseptic Carton Filling Machine?
The minimum order quantity is 1 piece.
