High Capacity Aseptic Carton Filling Machine with 1000-3000CPH Packing and 0.5-1% Filling Accuracy for 1000ml Prisma, Square, Or Basis
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| モデル | CH-3000B | 解決 | ターンキープロジェクト |
|---|---|---|---|
| 機械のサイズ | 4830mm×2150mm×3780mm | パッキング容量 | 1000-3000CPH |
| 機械 | SUS304 | キャップサイズ | φ26-φ36、1台のマシン用のワンサイズまたはカスタマイズ |
| 満ちるフォーマット | 1000ml プリズマ、スクエア、またはベーシス | 充填精度 | 0.5-1% |
| ハイライト | 1000-3000CPH Packing Aseptic Carton Filling Machine,1000ml Prisma Square Or Basis Aseptic Carton Filling Machine,0.5-1% Filling Accuracy Aseptic Carton Filling Machine |
||
製品の説明

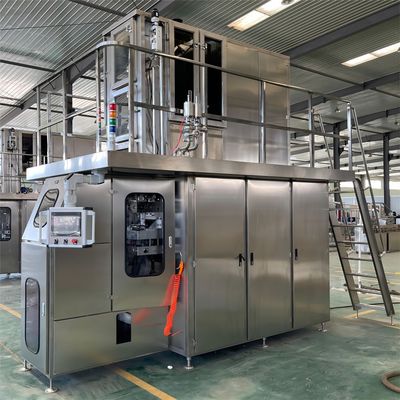

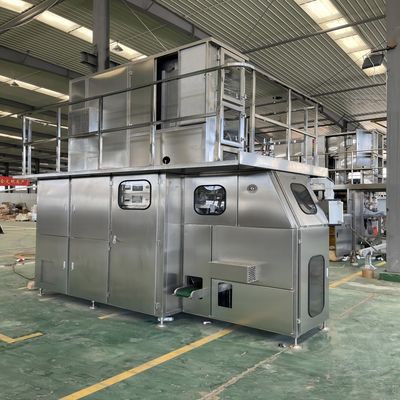

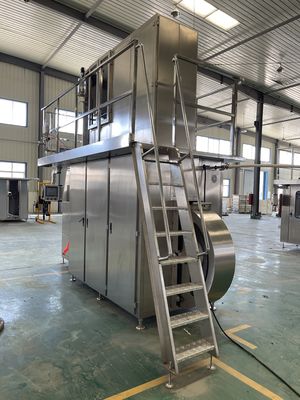

High Capacity Aseptic Carton Filling Machine SUS304 Material Turn Key Project Solution 1000-3000CPH Packing
Product Description
1000ml Gable Carton Aseptic Filling Machine For 100% Pure Juice
This machine is designed for filling soy milk, plant milk, yogurt, fruit and vegetable juice, and plant protein beverages into paper-aluminum-plastic composite packaging cartons, which are environmentally friendly.
The packaging material consists of multiple layers: paper with good printing adaptability and rigidity, a polyethylene adhesive layer, and aluminum foil for excellent barrier properties. This composite structure ensures product protection while being recyclable and eco-friendly.
The machine sterilizes both the carton packaging and the internal filling environment, enabling aseptic filling of UHT beverages with a shelf life of 6-12 months.
Key Features
- Advanced Control Technology: Fully automated PLC system controls all processes including paper feeding, strip pasting, packaging sterilization, filling, and forming.
- Reliable Operation: Equipped with multi-point sensing alarm control, automatic strip pasting, sterile system, servo correction, pre-forming, and terminal shaping systems.
- Safe Sterilization: Ensures pure milk packaging safety through advanced sterilization technology.
- User-Friendly Interface: Human-machine interface monitoring system for intuitive operation and enhanced reliability.
- Material Compatibility: Suitable for six-layer composite materials including polyethylene, paper, and aluminum foil.
Technical Specifications
| Name | CH-5000 Brick carton filling machine |
| Equipment model | CH-5000 |
| Production capacity | 5000 Carton per hour |
| Packaging form | Brick milk filling |
| Filling temperature | 25-50℃ |
| Filling accuracy | ±3 |
| Total power | 18KW |
| Power supply | 380V/220V 50Hz |
| Air requirements | 85psi/7bar, 1.2scfm/65lpm |
| Air pressure | 0.6-0.8 Mpa |
| Dimensions | 3800x1800x3500mm |
| Weight | 3500KG |
Component Suppliers
| NO. | Name | Vendor |
|---|---|---|
| 1 | PLC | OMRON |
| 2 | Touch screen | OMRON |
| 3 | Motor | Wistron |
| 4 | Temperature control | Wistron |
| 5 | Frequency converter | Wistron |
| 6 | Inverter | Wistron |
| 7 | Low voltage electrical components | IDEC |
| 8 | Pneumatic components | SMC |
| 9 | Proximity switch | Autonics |
| 10 | Photoelectric sensor | Omron |
Applications
This machine is designed for liquid beverage packaging, including soy milk, plant milk, yogurt, fruit and vegetable juice, and plant protein in environmentally friendly composite cartons.
CHIC Series Filling Machine options:
- 125ml
- 200S (200ml slim type)
- 200B (200ml standard type)
- 250S (250ml slim type)
- 250B (250ml standard type)
- 200Z (200ml diamond carton with cap/straw)
- 250D (250ml diamond carton with cap/straw)
- 330D (330ml diamond carton with cap/straw)
- 500D (500ml diamond carton with cap/straw)
- 500S (500ml Slim carton with cap/straw)
- 1000S (1000ml slim type)
- 1000D (1000ml diamond carton with cap)
Support and Services
- Installation guidance and support
- Operator training for efficient use
- Maintenance recommendations and troubleshooting
- Upgrades and customization services
- Remote technical assistance
- Spare parts availability and ordering
Frequently Asked Questions
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements:
1. Product type you want to pack
2. Required package size (length and width)
3. Weight per package
4. Machine requirements and package style preference
Q2: Is engineer available to serve oversea?
Yes, but travel fees are the customer's responsibility. We provide detailed installation videos and remote assistance.
Q3: How can we verify machine quality after ordering?
Before delivery, we provide photos and videos for quality inspection. You may also arrange third-party inspection in China.
Q4: How is payment security ensured?
We provide business licenses, certificates, and Alibaba Trade Assurance to guarantee payment security and on-time delivery.
Q5: What is the transaction process?
1. Sign contract
2. Pay 30% deposit
3. Production begins
4. Testing and inspection
5. Customer/third-party verification
6. Balance payment before shipment
Q6: Do you provide delivery service?
Yes. Please provide your destination for shipping cost quotation before delivery.
